5 Port HDMI Splitter Switch Switcher Box Selector 1080P

Port HDMI Splitter Switch Switcher Box Selector 1080P for Xbox 360 HD DVD TV With IR Remote Control + IR Receiver Cable
£9.99

Product Name

5 Port HDMI Splitter Switch Switcher Box Selector 1080P for Xbox 360 HD DVD TV With IR Remote Control + IR Receiver Cable

Specifics
Brand Name OEM
Package No
HDMI Vertiong 1.4
Shielding Non-Shielded
Application DVD Player
Connector Type HDMI
Connector B HDMI
Connector A HDMI
Connector Color Gold
Packing Slide Card Blister
Outer Diameter 0
Model Number SKU018435
Gender Other
Type Other
Power consumption(Max) 5w
HDMI Switch Size(L-W-H) 80x55x18mm
Cable length 110CM
Color Black
is_customized Yes



5 Port HDMI Splitter Switch Switcher Box Selector 1080P for Xbox 360 HD DVD TV With IR Remote Control + IR Receiver Cable





This is a kind of high performance mini HDMI Switcher. It compatible well with HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc, which has not only key-press-switching function, but also has IR remote control and intelligent function.

Features:

  • Multifunction on switching: intelligent or mechanical
  • IR extender receiver (included).
  • IR remote control (included).
  • Support HDMI 1.3b.
  • Support highest video resolution 1080p
  • Support 250MHz/2.5Sbps per channel (7.5Gbps all channel) bandwidth
  • Support 12but per channel (36bit all channel) deep color
  • HDCP pass-through
  • Support uncompressed audio such as LPCM
  • Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

Specifications:

Signal Inputs/Output

Input DDC Signal

5 volts p-p(TTL)

Maximum Single Link Range

1920X1080P

Output Video

HDMI 1.3b

Operating Frequency

Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

2.5Gbps/250MHz

Resolutions(HDTV)

Interlaced(50&60Hz)

480i, 576i, 1080i

Progressive(50&60Hz)

480p, 576p, 720p, 1080p

Mechanical

Remote Control Size(L-W-H)

85x38x6mm

HDMI Switch Size(L-W-H)

80x55x18mm

Cable length

110cm

Weight

94g

Environmental

Operating Temperature

0 to  +70 degree

Operating Humidity

10% to 85% RH (no condensation)

Storage Temperature

-10 to +80 degree

Storage Humidity

5% to 90% RH (no condensatin)

Power Requirement

External Power Supply

No power needed for standard product

Power consumption(Max)

5W






Attention : Don't insert or extract the IR extender receiver when the power on

otherwise the HDMI will be failure



Connection and Operation

1 .Contnect the HDMI input source into the HDMI switcher.
2. Contnect the IR extender receiver.
3. Contnect the Power adapter  (DC 5V 1A)
4. Turn on the power





Package Content:

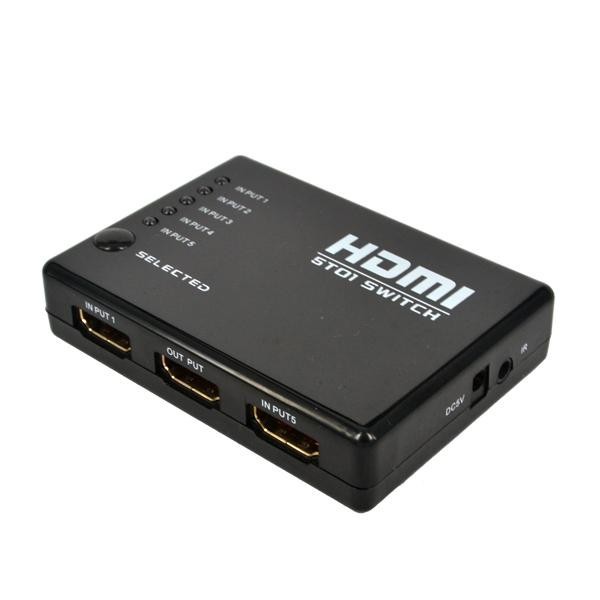

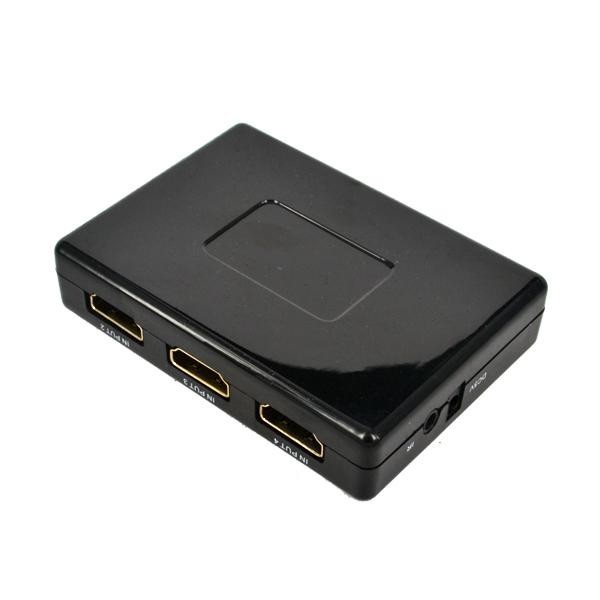

1 x 5 Port HDMI Switch

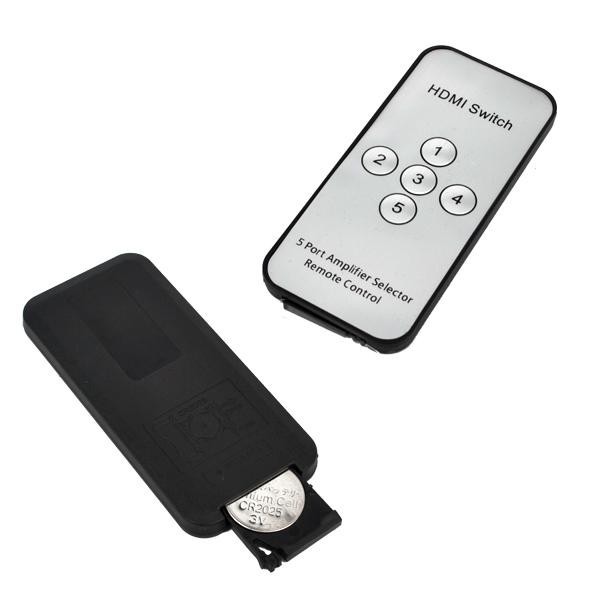

1 x Remote control

1 x External IR Receiver

1 x Manual

Note: The unit itself provides good power support. No AC adapter needed
